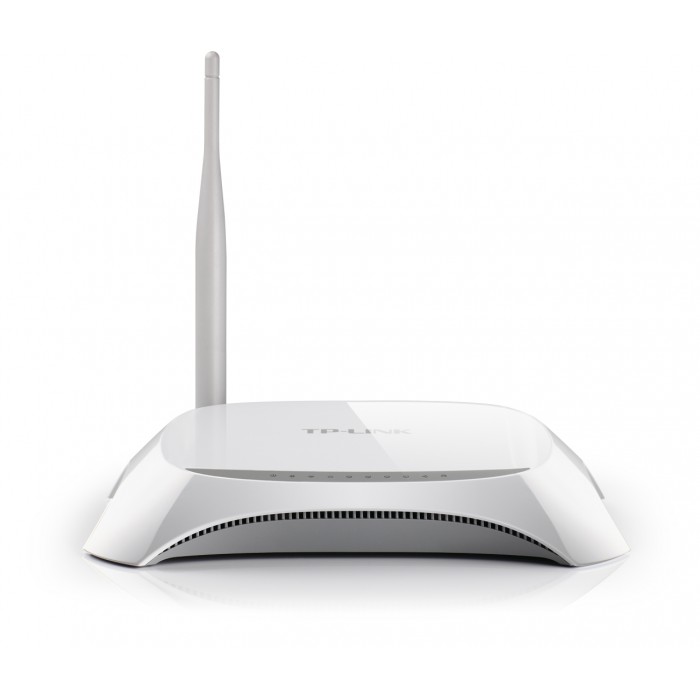

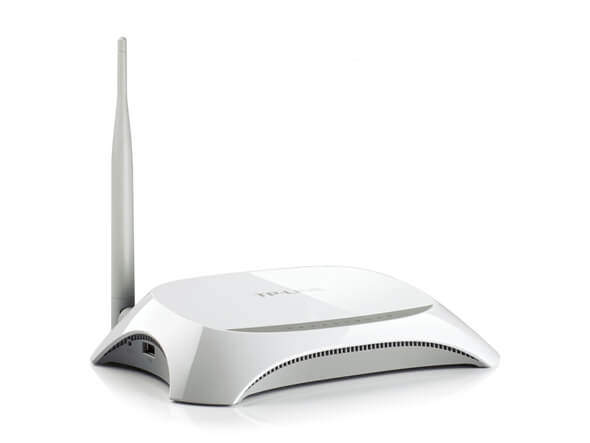

TP Link TL-MR3220 3G/4G Wireless N Router
Share the freedom of 3G/4G. The TL-MR3220 3G/4G Wireless N Router allows users to share a 3G/4G mobile broadband connection with family and friends via wired or wireless connections. By connecting a 3G/4G USB modem to the routers, a Wi-Fi hotspot is instantly established, via which multiple devices can access the Internet and share data and applications wirelessly.
Tests in the Field – High Compatibility
Compatibility is the most important aspect to consider when you’re selecting a 3G/4G router. To ensure the best compatibility between our routers and the modem you would use with the router, TP-LINK has made certain that our 3G/4G Routers are compatible with the ISPs in the regions in which they are sold. We have teams around the globe continually testing our Routers with newly emerged modems to ensure that end users can feel confident that their routers will operate flawlessly where they live and work.
Comprehensive 3G/4G and WAN Connection Backup Strategy
Wireless N Speed & Range
Complying with the IEEE 802.11n standard, the TL-MR3220 can establish a wireless network with transmission speeds of up to 150Mbps, while mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, users can easily pick up their wireless network’s signal at longer distances from the router, where with legacy 11g products they would have to be much closer.
Enjoy 3G/4G Wireless Sharing
WPA / WPA2 Encryptions
TP Link TL-MR3220 3G/4G Wireless N Router features:
- Compatible with LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB modems, tested in the field
- 3G/4G and WAN connection Backup guarantees an “Always-online” Internet connection
- Easy wireless security encryption at a push of the WPS button
- Bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
Check out the list of Access Points
HARDWARE FEATURES | |
---|---|
Interface | USB 2.0 Port for LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB Modem 1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX |
Button | WPS/Reset Button Wireless On/Off Switch Power On/Off Button |
External Power Supply | 9VDC/0.85A |
Dimensions ( W x D x H ) | 8*5.4*1.7 in. (204*138*44mm) |
Antenna Type | Omni directional, Detachable, Reverse SMA |
Antenna Gain | 5dBi |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11n*, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4-2.4835GHz |
Transmit Power | <20dBm |
Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
SOFTWARE FEATURES | |
---|---|
Security | NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
Management | Web Based Configuration(HTTP), Web Based Firmware Upgrade |
